ADS1255IDBR 24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 20-SSOP

Brand Name : original

Model Number : ADS1255IDBR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Bits : 24

Sampling Rate (Per Second) : 30k

Number of Inputs : 1, 2

Input Type : Differential, Single Ended

Data Interface : SPI

Configuration : MUX-PGA-ADC

Number of A/D Converters : 1

Architecture : Sigma-Delta

Voltage - Supply, Analog : 5V

Voltage - Supply, Digital : 1.8V ~ 3.6V

Contact Now

ADS1255IDBR 24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 20-SSOP

Specifications of ADS1255IDBR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Data Acquisition
Analog to Digital Converters (ADC)
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Number of Bits 24
Sampling Rate (Per Second) 30k
Number of Inputs 1, 2
Input Type Differential, Single Ended
Data Interface SPI
Configuration MUX-PGA-ADC
Ratio - S/H:ADC -
Number of A/D Converters 1
Architecture Sigma-Delta
Reference Type External
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 1.8V ~ 3.6V
Features PGA
Operating Temperature -40°C ~ 85°C
Package / Case 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package 20-SSOP
Mounting Type Surface Mount
Base Product Number ADS1255


Features of ADS1255IDBR


* 24 Bits, No Missing Codes
− All Data Rates and PGA Settings
* Up to 23 Bits Noise-Free Resolution
* ±0.0010% Nonlinearity (max)
* Data Output Rates to 30kSPS
* Fast Channel Cycling
− 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz
* One-Shot Conversions with Single-Cycle Settling
* Flexible Input Multiplexer with Sensor Detect
− Four Differential Inputs (ADS1256 only)
− Eight Single-Ended Inputs (ADS1256 only)
* Chopper-Stabilized Input Buffer
* Low-Noise PGA: 27nV Input-Referred Noise
* Self and System Calibration for All PGA Settings
* 5V Tolerant SPI™-Compatible Serial Interface
* Analog Supply: 5V
* Digital Supply: 1.8V to 3.6V
* Power Dissipation
− As Low as 38mW in Normal Mode
− 0.4mW in Standby Mode


Applications of ADS1255IDBR


Scientific Instrumentation
Industrial Process Control
Medical Equipment
Test and Measurement
Weigh Scales

Environmental & Export Classifications of ADS1255IDBR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

ADS1255IDBR 24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 20-SSOP


Quality ADS1255IDBR 24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 20-SSOP wholesale

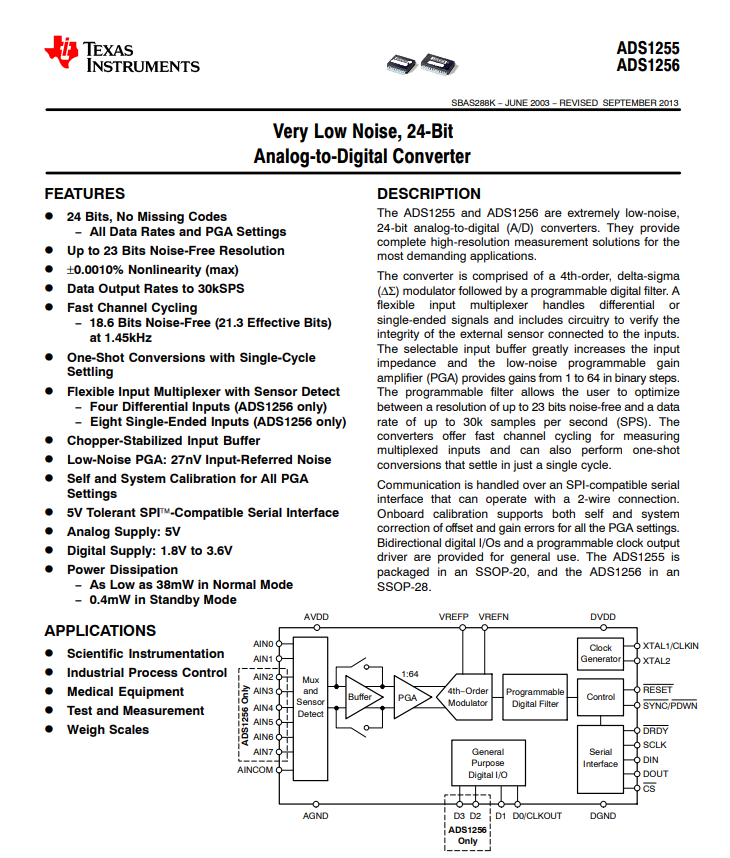

ADS1255IDBR 24 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 20-SSOP Images
