BCM8705BIFBG Transistor Ic Chip Telecom Interface 10 Gigabit

Name: BCM8705BIFBG Transistor Ic Chip Telecom Interface 10 Gigabit
Brand: original
Price: 1 USD

Brand Name : original

Model Number : BCM8705BIFBG

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Package : Tray

Product Status : Active

Function : Transceiver

Interface : Serial, XAUI

Number of Circuits : 1

Mounting Type : Surface Mount

Package / Case : 256-BGA

Supplier Device Package : 256-FBGA

Contact Now

BCM8705BIFBG Transistor Ic Chip Telecom Interface 10 Gigabit

Telecom IC Transceiver 256-FBGA

Specifications of BCM8705BIFBG

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Interface
	Telecom
Mfr	Broadcom Limited
Series	-
Package	Tray
Product Status	Active
Function	Transceiver
Interface	Serial, XAUI
Number of Circuits	1
Voltage - Supply	-
Current - Supply	-
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	256-BGA
Supplier Device Package	256-FBGA
Base Product Number	BCM8705

Features of BCM8705BIFBG

• Fully integrated CMU, CDR, SerDes, limiting amplifier, EyeOpener®, and 4-lane XAUI™ interface

• PMD interface supported serial rates: 9.953/10.3125/ 10.5188-Gbps

• Receive equalization on XAUI and 10G serial interfaces

• Transmit pre-emphasis and amplitude control on XAUI interface

• 10G PMD interface phase and decision threshold adjust

• WIS layer for EOS/WAN applications

• SONET performance monitoring

• Supports Broadcom’s StrataXGS® Ethernet switches service aware flow control (SAFC) protocol

• Meets and exceeds industry standard

• IEEE 802.3™ae serial Ethernet transceiver (LAN/WAN PHY), MDIO Clause 45 management interface with extended indirect address register access

• 10-Gigabit Fibre Channel draft, rev 3.0

• Support for XFP/XFI interfaces

• Support for XENPAK/X2 3.0 and XPAK MSA optical module standards

• Additional features

• Jumbo packets support in WAN mode

• Reference clock output for XFP module reference clock

• I 2C master to control XFP module from device

• Staged power-up mode to minimize in-rush current

• Loopback modes supporting IEEE standards modes

• Built-in self-test (BIST) and PRBS generator/checker

• Pin-compatible with the BCM8704

• Low power: LAN mode 900 mW, WAN mode 1.0W to 1.1W

• Available in 13-mm x 13-mm and 17-mm x 17-mm plastic BGA (Pb-free version also available)

Applications of BCM8705BIFBG

• XENPAK, X2, XPAK modules

• Interface to XFP modules

• LAN/MAN/WAN switch/routers

• Hubs and repeaters

• Network interface cards (NICs)

Environmental & Export Classifications of BCM8705BIFBG

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	5A991B1
HTSUS	8542.39.0001

BCM8705BIFBG Transistor Ic Chip Telecom Interface 10 Gigabit

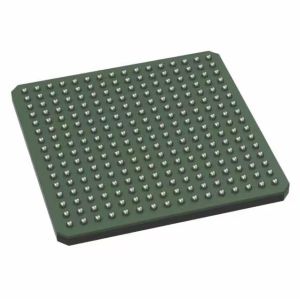

BCM8705BIFBG Transistor Ic Chip Telecom Interface 10 Gigabit Images
